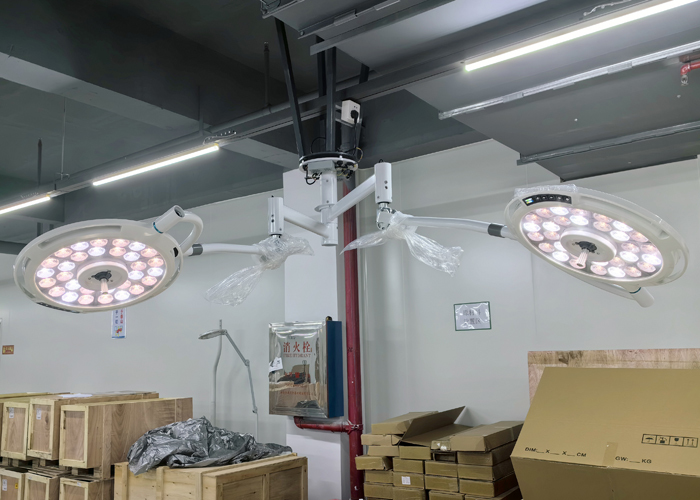

Dual-Head LED Surgical Lamp Ceiling-Mounted Operating Room Light
LED Surgical Lamp Advantages
-
Exceptional Coverage: The Dual-Head design provides broader, more comprehensive light coverage over the surgical area. This significantly reduces shadows and ensures the entire operating field is well-lit from multiple angles.
-
Space-Efficient Installation: Being Ceiling-Mounted, the lamp frees up valuable floor space in the operating room. This reduces clutter, improves staff mobility, and makes the area easier to clean and sterilize.
-
High-Quality Illumination: As a Surgical Lamp, it is engineered to provide bright, clear, and high-intensity light. This is crucial for surgeons who need precise visibility of tissue and anatomy.
LED Surgical Lamp Description
BT-LED290 series adopts high brightness LED cold light source,with the function of adjustable color temperature,adjustable illumination, adjustable spot, soft light,not dazzling, uniform brightness, low power consumption,long life, energy saving and so on.
It can be used in operating rooms and treatment rooms for local lighting ofpatients' surgical or examination areas.
LED Surgical Lamp Feature:
- German Osram LED ,it can work more than 50 000hours;
- Colour temperature can adjust flexible and illumination memory function;
- Constant current drive for stable working,and for increasing working life;
- With optical lens,maximizing the light efficiency of the lens through fine optical design,
- high light efficiency,low power and long life of light source;
- Unique Engineering Plastic Aluminum case with Aviation Aluminum Top in two colour;
- Stable base:The base adopts silent universal casters, which is strong, non-slip, durable and not easy to fall;
- Adjustable balance arm height:The height of the whole lamp is about 650-1800cm adjustable;
- Multi-angle modulation: three joints rotate to achieve multi-angle irradiation.
- The spot diameter is uniformly adjustable from 180 mm to 220mm,can be adjusted by turning the central adjusting
- handle to meet the requirements of doctor.
- New disinfecting handle with Built-in buckle 360 degrees removable design, can be 134℃ high temperature and
- high pressure disinfection.
- Simple and friendly interface: touch control, avoid button operation lamp head movement, high-definition full color
- LCD display
LED Surgical Lamp Parameter
| Head diameter | 410mm |
| Thickness of the lamp | 65 mm |
| Voltage | AC100-240V,50-60Hz |
| Power | 45VA |
| Colour temperature | 4200-5500K (9 levels adjustable) |
| Max Illumination | 80000Lx (10 levels adjustable) |
| Spot diameter | 180-220mm(adjustable) |
| Colour rendering index | 90 |
| Bulb | cold light source |
| Bulb life | >50000hrs |
| Bulb number | 30 pcs |
| Bulb brand | German Osram |
LED Surgical Lamp Advantage
Long Lifespan
Germany Osram LED Light Source, Overall aluminum board with good dissipation, power of the LED has a large margin to over 50000hours lifespan
Precise Brightness Control
High-frequency PWM modulation and constant current drive design, realize precise control of LEDS current and stable color temperature.
Adjustable Color Temperature
High and low color temperature LEDS Consist and independently controlled, adjusted from 4200-5500K to meet the needs of doctors.
Adjustment Field Diameter
Field diameter adjustment by turning the central handle, meet the doctor's usage.
Simple and Friendly Operation Interface
Touch control to avoid moving the lamp head, and the high-definition full-color LCD display is clear at a glance.
Multi-angle Adjustment
3 joints can rotate to realize multi-angle irradiation.
Stable and Lightweight
The large-span design of the base, the S-shaped vertical support tube, and the silent casters with locks, stable and move flexibly.
